Electric Gate Stuck Closed – Fast Fixes & Repair Guide

When an electric gate gets stuck closed, it usually traps your car in the driveway or leaves your property open to security worries. Before you grab a wrench or try to force anything open by hand, it pays to understand what is actually holding the gate shut.

Safety comes first on any automated gate system. According to the U.S. Consumer Product Safety Commission (CPSC), automated gates caused roughly 300 emergency-room injuries per year from 2011 through 2015, resulting in about 1,500 incidents over that span. According to technicians at Ironworks Gate Co., while a simple tripped circuit breaker or dirty safety sensor takes only minutes to fix, issues like mechanical binding, seized hinges, and damaged circuit boards need careful handling. Forcing a jammed gate can damage the drive mechanism or cause serious injury.^[1] See also Gate Repair Bell Gardens | Call Now-10% Off | On-Site in 60 Minutes | Free Estimate.

What to Check First When Your Gate Refuses to Open

Quick Assessment (General Advice): Start by confirming whether the operator has power and checking if the optical photo-eyes are clean and aligned. If the motor hums or clicks without moving the gate, the mechanical arm may be bound against its stop pin. Avoid forcing a manual release key while the system is under heavy mechanical tension; relieving physical pressure on the gate leaf first helps prevent damage to internal components.

Under UL 325 safety standards, entrapment is defined as a condition where an object is caught or held in a position that increases the risk of injury. Where entrapment risk exists, UL 325 requires at least two independent means of protection, such as monitored photo-eyes and built-in motor current sensing. On slide gate systems, an entrapment zone exists anywhere the clearance between the moving gate and fixed structural surfaces (like fence posts or walls) falls below 16 inches (406 mm) up to a height of 6 feet (1.8 m) above grade. Keeping these zones clear is essential before testing any automated motion.^[3]

Note: The troubleshooting procedures below are general advice and may vary depending on your specific system model and manufacturer.

Helpful Tools for Safe Inspection

• Manual release key: Disengages the motor clutch safely.
• Digital multimeter: Confirms main line voltage and low-voltage control circuits.
• Silicone spray lubricant: Helps free up sticky limit switches and lock latches.
• Flashlight: Helps you spot status indicators on the operator control board.

Quick Diagnostic Sequence (General Advice)

1. Check power: Verify the main subpanel breaker and test any reset buttons on nearby GFCI outlets.
2. Inspect safety sensors: Wipe away dirt, cobwebs, and moisture from both photo-eye lenses.
3. Relieve mechanical bind: Gently push back against the gate to release stored mechanical tension before turning the manual release key.

Step 1: Check the Power Supply and Breakers (General Advice)

An electric gate that is completely dead usually has an interrupted power supply. Vibrations from gate motors, outdoor weather exposure, and minor utility spikes can trip electrical protection upstream.

Inspecting the Breaker and GFCI Outlets

1. Check your main electrical panel or exterior subpanel for a tripped breaker feeding the gate operator.
2. Look for a dedicated weather-sealed GFCI outlet near the gate cabinet. Press the “Test” and then the “Reset” button firmly.
3. If you have electrical testing experience, use a multimeter inside the operator enclosure to verify proper incoming line voltage.

Battery Backup Systems

Many gate operators utilize internal DC battery backups. As Ironworks Gate Co. points out, when these batteries fail or lose charge over time, the control board may lock down as a safety precaution if utility power fluctuates. Check for swollen battery cases or corroded terminal leads.

Step 2: Inspect Photo-Eye Sensors and Optical Paths (General Advice)

If the operator clicks or lights up but refuses to open, the safety sensors may be holding the gate in place. Photo-eyes shoot an invisible infrared beam across the driveway. If that beam is interrupted, the operator assumes an obstruction is present and prevents movement.

Cleaning Lenses and Checking Alignment

1. Clean the lenses: Wipe both the sender and receiver lenses using a soft microfiber cloth. Spiderwebs, debris, and dirt can block infrared light.
2. Check the indicator lights: Look at the indicator LED on the receiving sensor to confirm whether the unit shows proper alignment or indicates an obstructed beam.
3. Clear ground obstructions: Trim back overgrown weeds, low-hanging branches, or tall grass that may sway into the beam path.

Step 3: Relieve Mechanical Binding and Structural Hinge Bind (General Advice)

A frequent reason a gate hums without opening is mechanical binding. This can occur when the gate closes tightly against a ground stop or post catch, placing the drive arm or gears under tension.

Why Heavy Gates Bind Up

Heavy gates place substantial loads on hinge posts. According to Ironworks Gate Co., over time, ground movement and environmental factors can cause posts to lean slightly out of alignment. When a gate sags, the frame may jam tightly into the receiver latch, preventing the motor from overcoming the friction.^[2]

How to Relieve Pin Tension Safely

1. Support the frame: Place a sturdy timber wedge or mechanical support gently beneath the outer corner of the gate frame.
2. Relieve hinge load: Relieve excess weight from the hinge pins by supporting the frame slightly.
3. Relieve operator pressure: Have a second person gently push the gate leaf toward the closed position while you release the operator bracket pin or turn the emergency release handle.

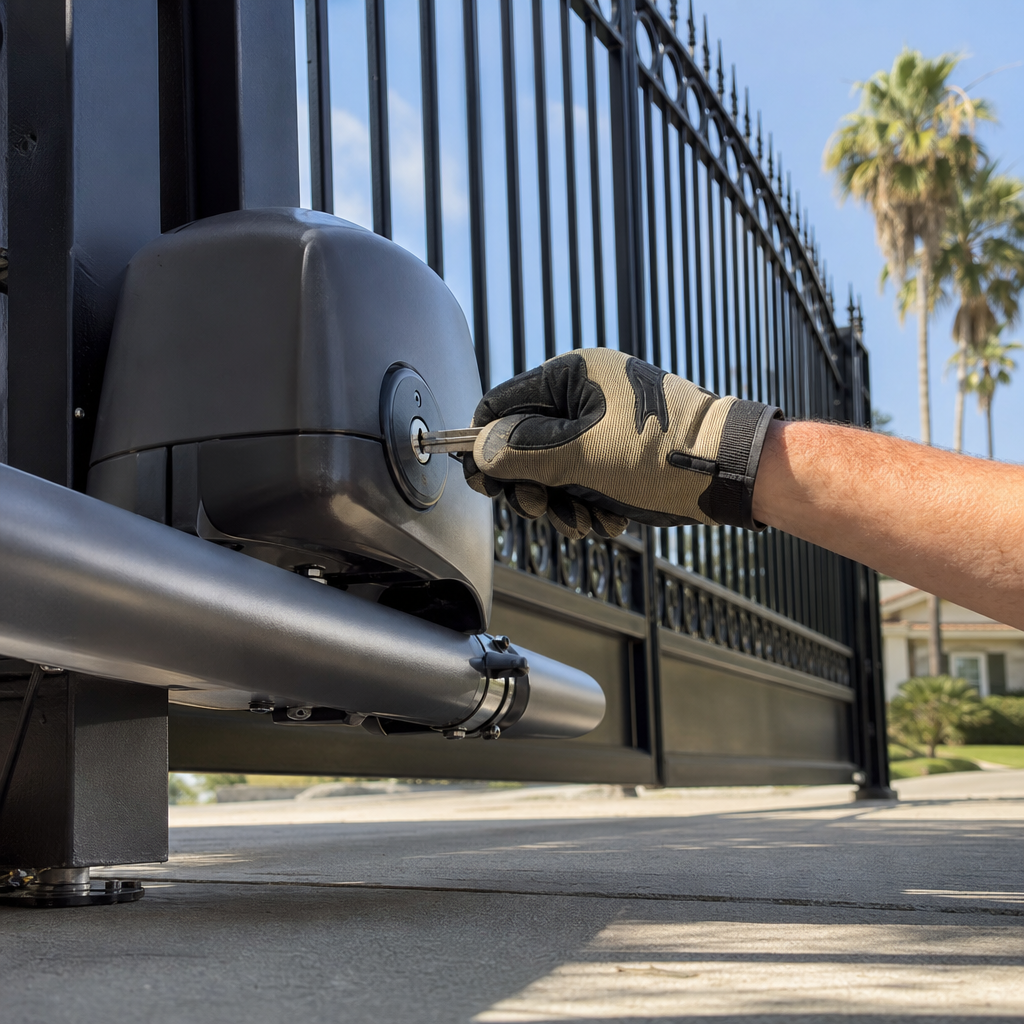

Step 4: Use the Manual Release Key Safely (General Advice)

Automated gate operators generally include a manual release mechanism to allow manual operation during power outages or malfunctions.

General Release Procedures by Gate Type

• Swing Gates: Unlock the keyhole cover on the drive arm and turn the release key to disconnect the drive mechanism.
• Slide Gates: Open the operator chassis door and disengage the internal mechanical release handle or disconnect the drive chain bracket.

Warning: If the release mechanism feels jammed, do not force it. Forcing a release under heavy mechanical load can damage internal drive gears. Relieve the physical load on the gate first, then turn the release.

Step 5: Check Remotes, Keypads, and Control Boards (General Advice)

When the gate does not respond to a handheld transmitter, test alternative inputs to narrow down the cause.^[4]

Testing Wireless Inputs vs. Hardwired Triggers

1. Try using an alternate remote or a hardwired wall control button.
2. Enter your code on the external keypad. If the keypad lights up but the gate stays motionless, the issue may be in the control board or sensor circuits.
3. Check remote batteries. Weak batteries may illuminate the remote light without transmitting a strong enough signal to reach the receiver.

Checking Control Board Indicators

Many control boards feature status indicator lights to assist with basic troubleshooting. Consult the manufacturer manual to identify specific indicators for incoming power, active safety inputs, and open control loops, and inspect the board for blown fuses.

Step 6: Inspect Ground Tracks, Rollers, and Hinges (General Advice)

On sliding driveway gates, physical friction along the rolling track is a common issue. If the motor encounters excessive resistance, safety mechanisms may stop movement to protect the motor.

V-Groove Wheels and Track Alignment

• Track Debris: Sweep out rocks, dirt, and gravel wedged inside the track groove.
• Wheel Bearings: Inspect the lower wheels to ensure they rotate freely and are not dragging along the track.
• Guide Rollers: Check the upper guide rollers holding the gate upright to ensure they are not seized or pinching the gate frame.

Typical Repair Categories for a Stuck Electric Gate

The total approach to fixing an electric gate stuck closed depends on whether the issue is electrical, electronic, or structural. Simple sensor realignments and switch adjustments are relatively straightforward, while motor replacements or structural ironwork require specialized service from professionals like Ironworks Gate Co.

Repair Category	Common Fixes	Structural Work Required?
Electrical & Sensors	Photo-eye realignment, fuse replacement, remote reprogramming	No
Hinges, Wheels & Tracks	Bearing replacement, track leveling, hinge lubrication	Occasional
Operator & Drive Components	Capacitor replacement, drive servicing, motor replacement	Rare
Structural Iron & Posts	Straightening sagging hinge posts, repairing mounting tabs	Yes

Frequently Asked Questions

Why won’t my automatic driveway gate open with the remote?

This is commonly caused by depleted remote batteries, radio interference, misaligned safety photo-eyes, or a tripped circuit breaker. If the operator clicks when the button is pressed, the remote is communicating, but a safety sensor or mechanical bind may be preventing movement.

How do I manually open an electric gate when it is stuck closed?

Locate the manual release mechanism on your operator. For swing gates, this is typically a key-operated release on the actuator arm. For slide gates, open the operator cabinet to access the manual disconnect handle. If the mechanism resists turning, relieve mechanical tension on the gate leaf before operating the release.

How do you reset an electric gate opener?

As general guidance, turn off the dedicated circuit breaker supplying power to the gate operator for 60 seconds, then switch it back on. If your system includes a battery backup, turn off the breaker, safely disconnect the battery leads for one minute, reconnect the battery, and restore main AC power.

What causes an electric gate to stop working suddenly?

According to Ironworks Gate Co., common causes include blown control board fuses from power surges, obstructed safety sensors, depleted backup batteries, or structural misalignment that causes the gate to bind.

When should I call a professional gate repair technician?

Call a qualified gate technician if the motor hums but will not move after you have checked the track and sensors, if the control board shows burnt components, if the gate leaf is sagging significantly, or if the system is under heavy mechanical tension that prevents safe manual release.

Sources

1. [PDF] 2015 Annual Report – Consumer Product Safety Commission – cpsc.gov (2015)
2. New Safety Standard for Automatic Security Gates Helps … – cpsc.gov (2001)
3. Gate Fence Accidents in Los Angeles | The National Law Review – natlawreview.com (2001)
4. STANDARDS UPDATE NOTICE (SUN) ISSUED: March 7, … – intertek.com (2018)

Related reading: Commercial Gate Repair | 10% Off & Free Estimate | On-Site in 60 Minutes

Related reading: 24 Hour Gate Repair Near Me – Call Now-10% Off – On-Site in 60 Minutes – Free Estimate

Related reading: Emergency Gate Repair – Call Now-10% Off – On-Site in 60 Minutes – Free Estimate

Frequently Asked Questions

What should I do if the manual release key won't turn or is lost?

If the manual release key is missing or resists turning even after relieving physical gate tension, do not force it with tools as this can crack the internal drive casing. Contact Ironworks Gate Co. for immediate same-day assistance, as licensed technicians can safely disconnect the actuator arm or override the clutch without damaging the motor.

Why is my electric gate motor humming without moving the gate?

A humming motor typically indicates a blown start capacitor, stripped internal drive gears, or severe mechanical binding that exceeds the operator's torque limit. Shut off breaker power immediately to prevent the motor windings from burning out, and schedule an on-site diagnostic assessment with Ironworks Gate Co. to test internal electrical components.

How can I fix a sagging post that keeps causing the gate to bind shut?

Persistent binding caused by ground settling or leaning hinge posts requires structural iron repair, such as re-plumbing the post, reinforcing footings, or installing heavy-duty adjustable hinges. Ironworks Gate Co. provides specialized structural post realignment to permanently resolve mechanical binding and protect your gate operator from repeated strain.
