Commercial Gate Repair – Rapid Restorations & Safety

When an automated entrance stops moving at an industrial yard, apartment complex, or commercial facility, operations stall immediately. A stuck gate blocks delivery trucks, traps tenant vehicles, and compromises perimeter security. While property managers may suspect a humming, non-responsive operator indicates motor burnout, mechanical drag caused by track deflection, settled concrete, or seized hinge pins can frequently be an underlying factor. Ironworks Gate Co. provides commercial gate repair across Bell Gardens and Los Angeles County, aiming to diagnose mechanical issues before recommending electrical replacements.^[3]

Observations from the U.S. Consumer Product Safety Commission (CPSC) indicate that automatic gates generally account for roughly 300 emergency room visits annually (totaling approximately 1,500 over a five-year study period), while ASTM reports document serious workplace accidents involving fractures and crush hazards. These safety observations apply to automatic gates generally and documented workplace incidents rather than every commercial repair scenario. As part of our service capabilities, our technicians work to restore alignment, service major operator brands such as DoorKing and LiftMaster, and assist clients seeking to meet UL 325 safety standards.^[1] See also Gate Repair Bell Gardens | Call Now-10% Off | On-Site in 60 Minutes | Free Estimate.

Emergency Triage: Restoring High-Cycle Commercial Entrances

Commercial sliding gates and heavy swing barriers undergo numerous open-close cycles every week. When these systems fail, general handymen often attempt quick electrical fixes, reset breaker switches, or spray penetrating oil over worn bearings. These stopgap measures do not fix underlying structural shifts.^[4]

Our diagnostic process focuses on the mechanical and electrical loop:

1. Manual Disconnect and Friction Testing: We release the drive arm or chain to test gate travel by hand. A properly installed heavy sliding gate should move with minimal manual effort; if it catches or drags, physical resistance on the track or hinges may be present.
2. Relay Logic and Amperage Testing: Technicians can meter incoming line voltage, transformer output, and run-cycle amp draw to check whether high current is tripping thermal overload protection.
3. Structural and Safety Inspection: Technicians inspect the condition of monitored photo-eyes, safety edge sensors, ground loops, guide rollers, and structural welds.

As a company service option, Ironworks Gate Co. offers same-day emergency response subject to current dispatch schedules, geographic route conditions, and parts availability for your specific operator configuration.

What Does Commercial Gate Repair Cost?

Commercial gate repairs generally range from the low hundreds for minor mechanical alignments or weld adjustments to the low thousands for major control board retrofits, gearbox overhauls, or full operator replacements. Because industrial and multi-family gates vary in weight, daily duty cycles, and access complexity, pricing depends on evaluating the physical frame and the electronic drive system.

We provide upfront, written quotes on-site before performing work, supported by our 90-Day Done Right Promise on installed parts and labor.

Repair Scope	Common Issues Addressed	Estimated Cost Range
Minor Mechanical & Alignment	V-groove roller replacement, track clearing, hinge greasing, chain tensioning	Low hundreds
Structural & Weld Restoration	Sagging frame repair, re-welding broken hinge ears, post reinforcement, wind-damage straightening	Low to mid hundreds
Access Control & Safety Sensors	Replacing photo-eyes, loop detector tuning, keypad wiring, receiver programming	Mid hundreds
Major Operator & Motor Rebuild	Gearbox replacement, motor capacitor rebuild, control board replacement (DC/AC)	Low thousands
Full Commercial Opener Replacement	Complete continuous-duty operator, mounting pad adjustments, entrapment protection integration	Low thousands

Operator Burnout or Track Deflection? Diagnosing High-Cycle Failures

A frequent diagnostic assumption in commercial electric gate repair is that an operator that clicks, hums, or shuts down mid-travel has suffered total motor burnout. However, commercial gate motors are often equipped with thermal overload sensors designed to cut power before internal components overheat.

When heavy vehicles pass over surface-mounted V-tracks, steel rails can deflect and pinch gate rollers. Similarly, ground settling or wind loading on heavy swing gates can push hinges out of plumb. This physical friction can cause the drive unit to pull increased amperage, prompting the control board to interpret the resistance as an obstacle or reach thermal cutoff.

Replacing an operator without correcting track deflection or hinge binding can lead to premature motor wear. As Ironworks Gate Co. technicians note, addressing the physical rail and hinge alignment helps ensure the drive motor operates under appropriate mechanical load.

Diagnostic Step	Specialized Commercial Technician	General Handyman or Custodial
Motor Diagnostic	Evaluates operating amperage against manufacturer load specifications	Listens for humming and assumes motor is dead
Mechanical Testing	Disconnects drive chain to isolate track and hinge friction	Attempts to force gate movement using higher motor force settings
Structural Repair	Performs on-site stick/MIG welding, roller re-shimming, and track leveling	Applies spray lubricants over worn, seized bearings
Safety Compliance	Inspects monitored photo-eyes and contact edges for proper operation	Often bypasses safety loops to get gate moving temporarily

Commercial Gate Components We Repair and Service

Commercial entry systems involve structural ironwork, electrical feeds, and logic controls. Our service trucks are equipped to address mechanical and electrical issues on-site as part of our repair services.

Continuous-Duty Gate Operators and Drive Units

Our service capabilities include chain-driven slide operators, hydraulic swing rams, overhead track operators, and barrier arm mechanisms. We work on internal drive sprockets, friction clutches, and control board relays.

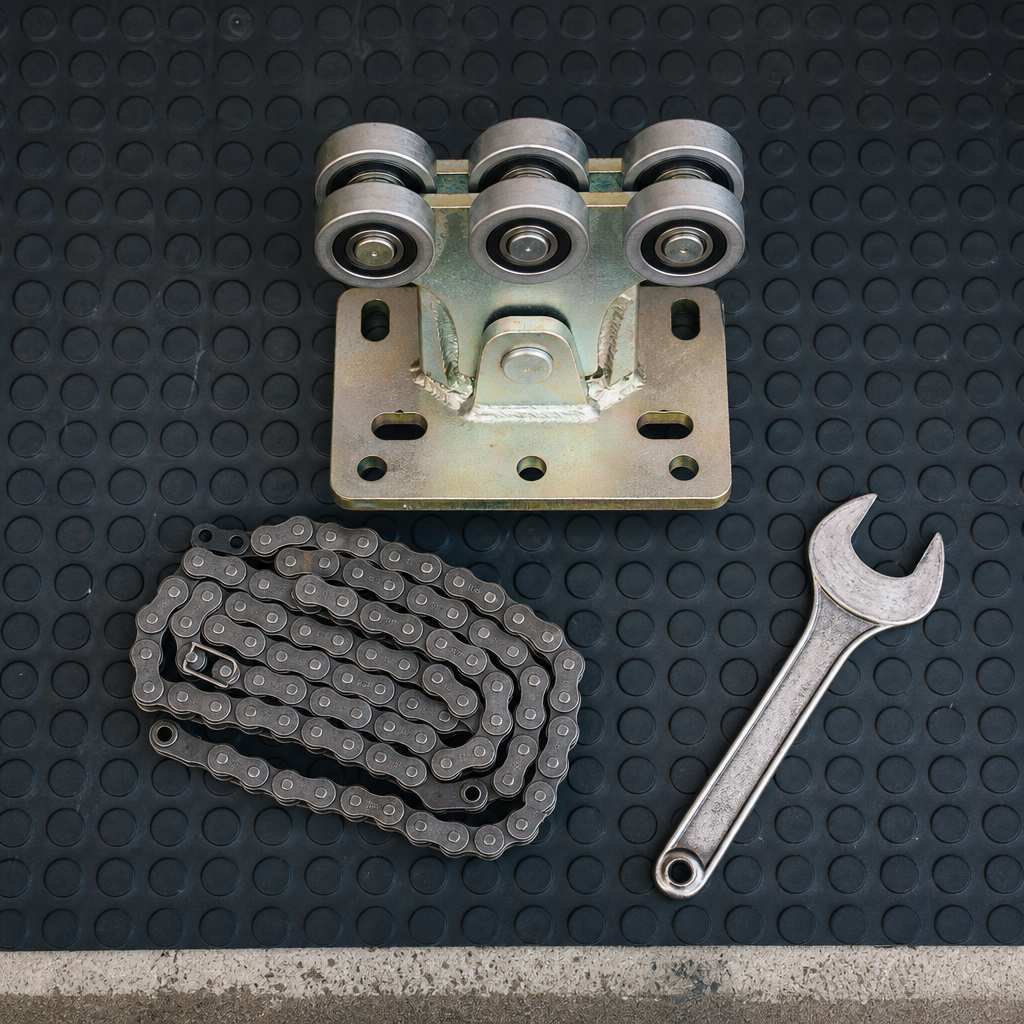

Tracks, V-Groove Wheels, Cantilever Rollers, and Hinges

When heavy gates roll across uneven surfaces, wheel bearings and guide rollers can wear down over time. We replace worn steel and poly wheels, service greaseable barrel hinges, and realign cantilever roller assemblies.

Safety Loop Detectors, Entrapment Sensors, and Access Controls

We service and integrate safety accessories and access controls, including wireless safety edges, monitored photo-eyes, vehicle loop detectors, keypads, card readers, and telephone entry panels, designed to support client safety and access requirements.

Commercial Gate Opener Brands Serviced Across Los Angeles County

Our technicians work with modern microprocessor-driven units and relay-logic gate openers found across industrial parks, commercial complexes, and multi-family properties throughout Bell Gardens, Commerce, Downey, and surrounding communities.

LiftMaster Commercial Operators

Our repair capabilities cover LiftMaster commercial equipment, including high-traffic slide operators (such as the CSL24U and SL585) and swing units (such as the CSW24U and CSW200). Typical services include replacing expansion boards, resetting travel limits, and adjusting safety inputs.

DoorKing (DKS) Systems

We service DoorKing slide gates (such as the 9150 and 9050) and swing models (such as the 6050 and 6100), troubleshooting circuit boards, brake assemblies, chain disconnects, and DKS 1830-series telephone access panels.

Viking Access, HySecurity, and Nice Apollo

Our team works on HySecurity SlideDriver hydraulic units as well as Viking H-10 and T-21 gearboxes, utilizing compatible replacement parts and control boards to restore continuous-duty operation.

Frequently Asked Questions About Commercial Gate Repair

How much does commercial gate repair cost?

Minor repairs such as track adjustments, roller replacements, or sensor realignments generally fall in the low hundreds. Major repairs, including control board replacements, hydraulic overhauls, or frame welding, typically reach into the low thousands depending on parts and labor requirements.

What are common reasons a commercial gate stops working?

Common factors include mechanical resistance from bent tracks, worn bearings, or sagging hinges that trigger overload safety shutoffs. Other contributing issues include misaligned optical sensors, vehicle impacts, access control wiring faults, or power fluctuations.

How quickly can an emergency commercial gate repair technician arrive?

Ironworks Gate Co. offers same-day emergency dispatch options across Bell Gardens and neighboring Los Angeles County areas. Exact arrival windows depend on current technician availability, route conditions, and scheduling.

Should I repair or replace my commercial security gate?

If the gate frame remains structurally sound without severe collision damage or structural failure, mechanical and operator repairs are often practical. Total replacement may be recommended when the structural integrity has failed or when an outdated operator cannot be adapted to meet safety guidelines.

How often does a commercial gate need preventative maintenance?

Commercial properties often schedule preventative maintenance multiple times per year depending on traffic volume. Regular checks include lubricating hinge points, inspecting chain tension, testing safety sensors, and checking operator current draw.^[2]

What access control systems are compatible with commercial sliding and swing gates?

Commercial gate operators can generally interface with modern commercial access control systems, including cellular telephone entry units (such as DoorKing and LiftMaster CAPXL), card readers, digital keypads, emergency Knox boxes, and standard vehicle loop detectors.

For commercial gate repair, welding, or preventative maintenance, contact Ironworks Gate Co. to schedule an on-site technical assessment.
